ARKLOW SAND - ID 613

In dienst
Onder Nederlandse Vlag tussen:0000-00-00 / 0000-00-00

Identification Data

Bouwjaar: 1998
Classification Register: Bureau Veritas (BV)
IMO nummer: 9163611
Nat. Official Number: 19109 Z R 1998
Categorie: Cargo vessel
Voorstuwing: Motor Vessel
Type: General Cargo, Multi Purpose
Rig: 1 Gantrycrane
Lift Capacity: 13,5 ton
Material Hull: Steel
Dekken: 1
Construction Data

Scheepsbouwer: Scheepswerf & Machinefabriek Barkmeijer Stroobos B.V., Stroobos, Friesland, Netherlands
Werfnummer: 281
Launch Date: 1997-11-21
Delivery Date: 1998-01-06
Technical Data

Engine Manufacturer: Maschinenbau Kiel A.G., Kiel, German Federal Republic
Motor Type: Motor, Oil, 4-stroke single-acting
Number of Cylinders: 8
Power: 1360
Power Unit: kW
Eng. additional info: MAK Type 8M20. (200x300)
Speed in knots: 11
Number of screws: 1

Gross Tonnage: 2300.00 Gross tonnage
Net Tonnage: 1290.00 Net tonnage
Deadweight: 3200.00 tonnes deadweight (1000 kg)
Teu: 116

Length 1: 89.98 Meters Length overall (Loa)
Length 2: 84.99 Meters Length between perpendiculars (Lbp)
Beam: 12.50 Meters Breadth, extreme
Depth: 6.00 Meters Depth, moulded
Draught: 4.65 Meters Draught, maximum
Ship History Data

Date/Name Ship 1998-01-00 ARKLOW SAND
Manager: Arklow Shipping Nederland B.V., Rotterdam, Zuid-Holland, Netherlands
Eigenaar: Rederij Sonnega B.V., Zaandam, Noord-Holland, Netherlands
Shareholder:
Homeport / Flag: Zaandam / Netherlands
Callsign: PDIO

Date/Name Ship 2001-00-00 ARKLOW SAND
Manager: Arklow Shipping Nederland B.V., Rotterdam, Zuid-Holland, Netherlands
Eigenaar: Scheepvaart Maatschappij Eemsland B.V., Zaandam, Noord-Holland, Netherlands
Shareholder:
Homeport / Flag: Zaandam / Netherlands
Callsign: PDIO

Date/Name Ship 2004-04-00 ARKLOW SAND
Manager: Arklow Shipping Nederland B.V., Rotterdam, Zuid-Holland, Netherlands
Eigenaar: Arklow Shipping Nederland B.V., Rotterdam, Zuid-Holland, Netherlands
Shareholder:
Homeport / Flag: Zaandam / Netherlands
Callsign: PDIO

Date/Name Ship 2006-08-00 ARKLOW SAND
Manager: Arklow Shipping Nederland B.V., Rotterdam, Zuid-Holland, Netherlands
Eigenaar: BBS Bulk 1 KS, Bergen, Norway
Shareholder:
Homeport / Flag: Zaandam / Netherlands
Callsign: PDIO

Date/Name Ship 2012-05-30 BBS SAND
Manager: Vaage Ship Management AS, Bergen, Norway
Eigenaar: BBS Bulk 1 KS, Bergen, Norway
Shareholder:
Homeport / Flag: Zaandam / Netherlands
Callsign: PDIO
Additional info: Naamswijziging te Dublin.

Date/Name Ship 2014-01-00 PS SAND
Manager: Pillar Shipping SCS, Luxembourg, Luxembourg
Eigenaar: Pillar Shipping SCS, Luxembourg, Luxembourg
Shareholder:
Homeport / Flag: Nassau / Bahamas
Callsign: C6AZ5

Date/Name Ship 2014-09-11 FLUVIUS PLYM
Manager: Amasus Shipping B.V., Delfzijl, Groningen, Netherlands
Eigenaar: Fluvius Plym Ltd., Nassau, Bahamas
Shareholder:
Homeport / Flag: Nassau / Bahamas
Callsign: C6AZ5
Additional info: Renamed at IJsselmonde

Ship Events Data

2005-02-23: Op 23.02.2005, onderweg van Boston naar Spanje, in the Wash aan de grond gestoten en kreeg daardoor roerproblemen. Door de sleepboot "Sun London" naar de Medway gesleept. Aankomst 01.03.2005. 04.03.2005 door de sleepboot "Fairplay 22" naar Schiedam gesleept voor reparatie.
2012-06-30: The BBS SAND was in collision with the buoy 41 on the Ems on June 30, 2012, around 5 p.m. whilst coming from Klaipeda. The ship pulled the ton into the middle of the fairway before the Russian master got the ship emergency anchored and the propulsion was cleared. When the ship was clear to sail again it entered the port of Emden with tug assistance, where the police launched an investigation after the ship berthed at the Zungen Quay at 9.30 p.m. The police found out that the ship had already suffered an engine failure in the early morning after having passed the Brunsbuettel locks of the Kiel Canal around midnight. Some hours later a second blackout occurred which caused the collision. The ship was detained until the cause of the blackouts has been found out and the ship is cleared to sail. The buoy layer ""Gustav Meyer" of the Emden Shipping Authority was meanwhile called to pull the buoy 41 back on its position.
2013-03-26: On Mar 26, 2013, the "BBS SAND" ran aground enroute Koge-Berwick around 2 p.m. as it was attempting to enter Tweed Dock in the afternoon. The grounding happened as the vessel made ist way up the Tweed estuary. The dock’s pilot boat helped the vessel back into deeper water before it berthed safely. The ship was carrying a load of malting barley. The tide and strong wind contributed to the ship running aground for a short time. The ship was in Tweed Dock by 3.25 p.m.

Afbeeldingen

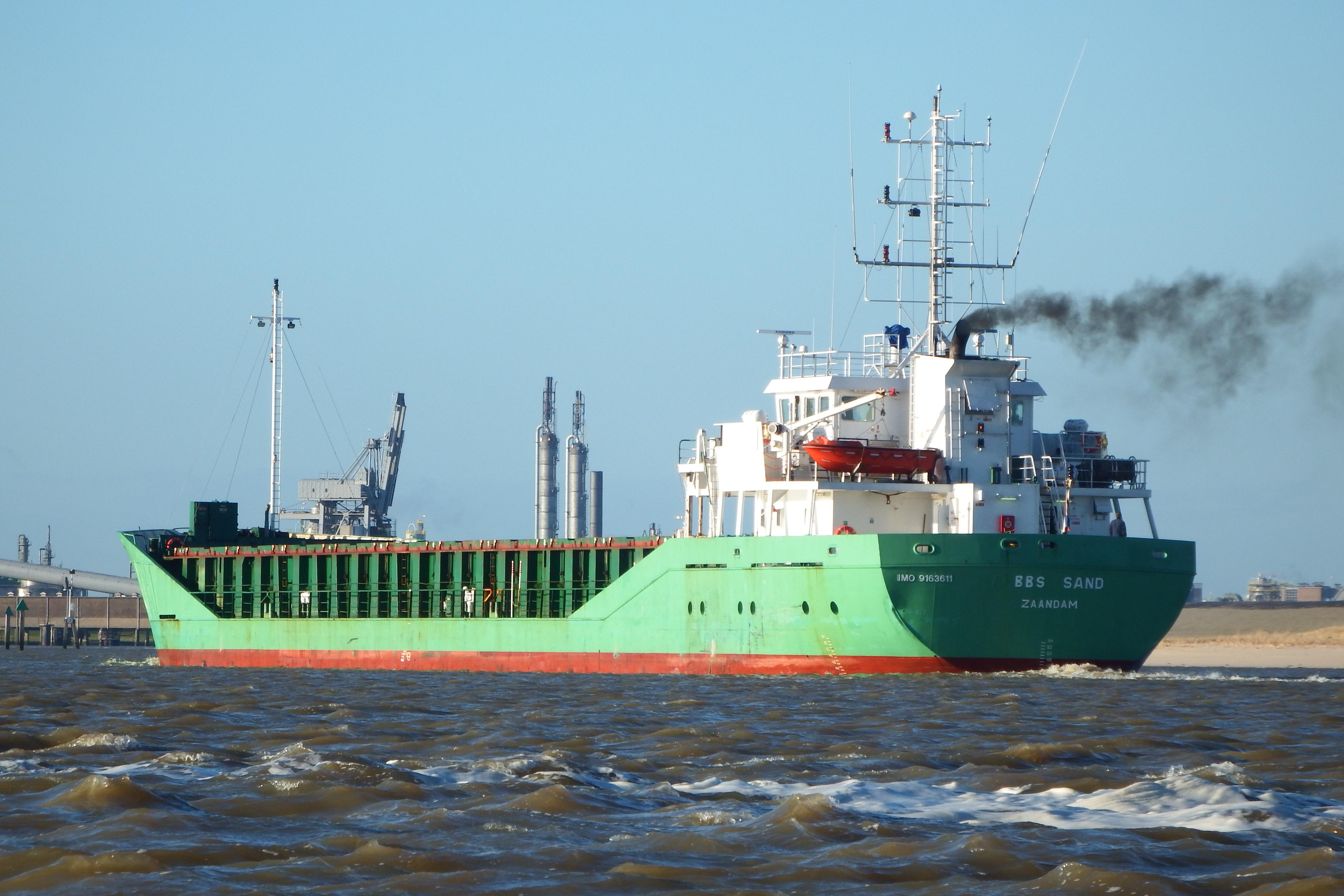

Omschrijving: Arklow Sand 1998
Gemaakt door: Olinga, F.J. (Frits)

Omschrijving: Arklow Sand 1998 on 17-01-2012 Nieuwe Waterweg.
Gemaakt door: Jungerius, Henk

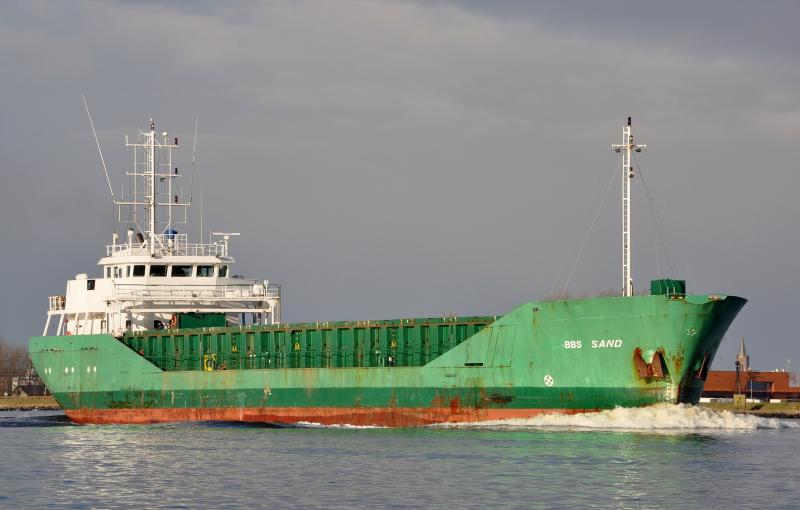

Omschrijving: BBS Sand 1998 ex Arklow Sand on 11-12-2012 Noordzeekanaal.
Gemaakt door: Coster, M. (Marcel)

Omschrijving: BBS Sand on River Ems inward bound for Delfzijl the 5th January 2014.
Gemaakt door: Olinga, F.J. (Frits)

Omschrijving: BBS Sand inbound Delfzijl the 5th January 2014.
Gemaakt door: Olinga, F.J. (Frits)

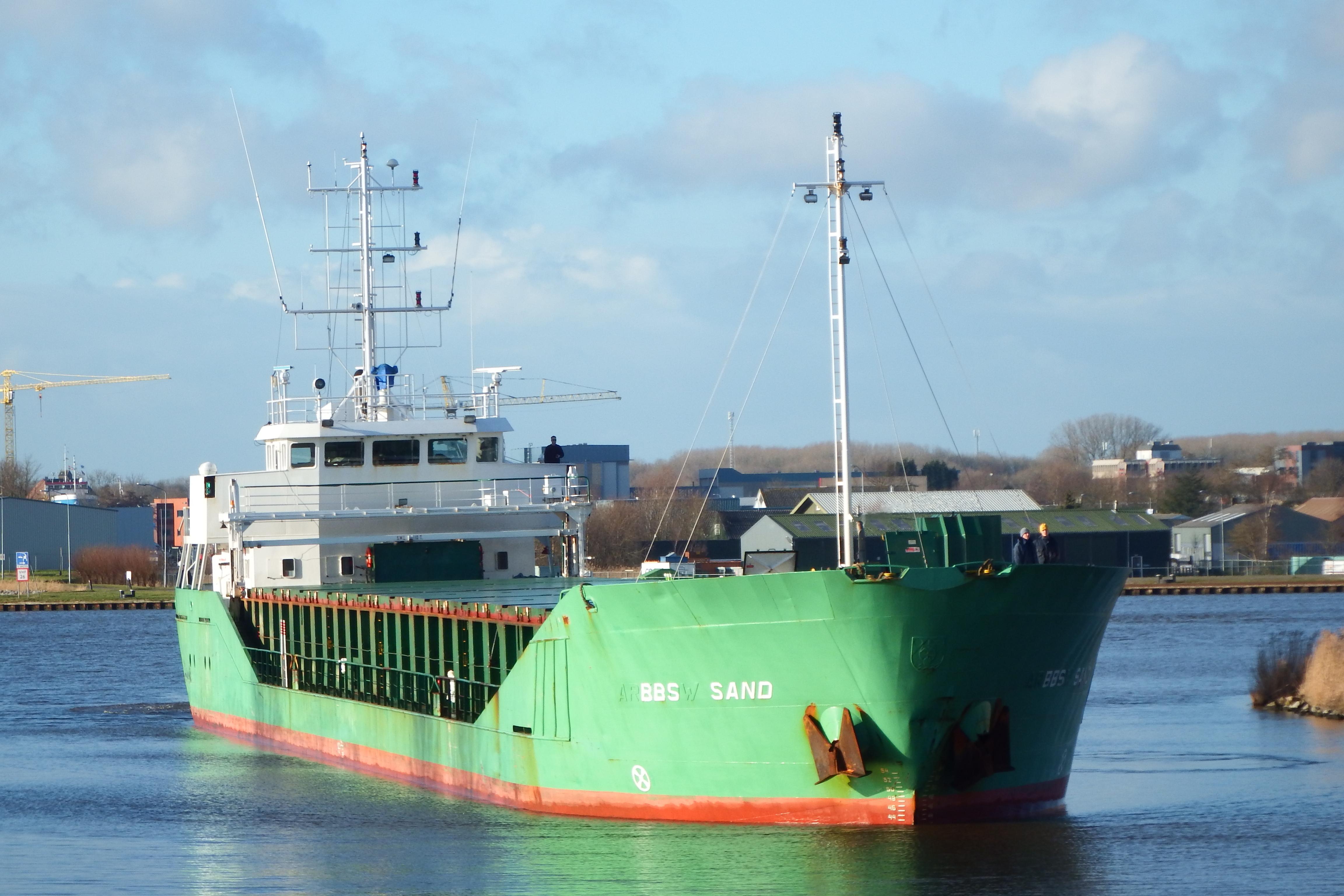

Omschrijving: m.v. "BBS Sand" at Delfzijl, Oosterhornkanaal, the 5th January 2014.
Gemaakt door: Olinga, F.J. (Frits)

Omschrijving: m.v. "BBS Sand" at Delfzijl, Oosterhornkanaal, the 5th January 2014.
Gemaakt door: Olinga, F.J. (Frits)

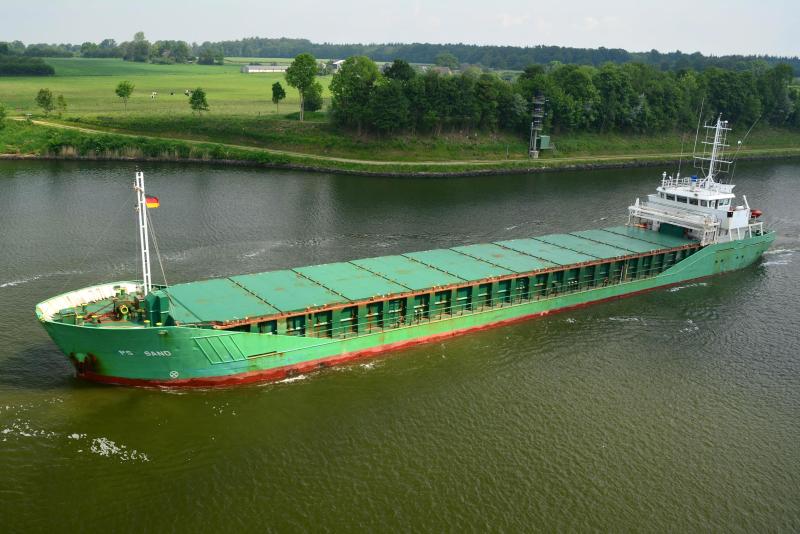

Omschrijving: PS Sand 1998 ex BBS Sand ex Arklow Sand on 02-05-2014 at IJmuiden.
Gemaakt door: Coster, M. (Marcel)

Omschrijving: PS Sand 1998 ex BBS Sand ex Arklow Sand on 02-09-2014 at Dockside, IJselmonde.
Gemaakt door: Goudriaan, J. (Koos)

Omschrijving: PS Sand 1998 ex BBS Sand ex Arklow Sand on 02-09-2014 at Dockside, IJselmonde.
Gemaakt door: Goudriaan, J. (Koos)

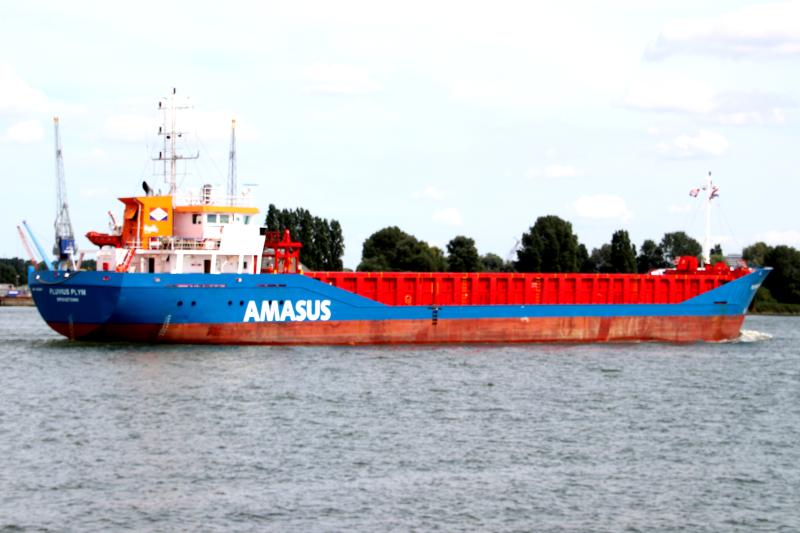

Omschrijving: Fluvius Plym 1998 ex PS Sand ex BBS Sand ex Arklow Sand on 12-06-2015 Nieuwe Waterweg.
Gemaakt door: Goudriaan, J. (Koos)

Omschrijving: Fluvius Plym 1998 ex PS Sand ex BBS Sand ex Arklow Sand on 12-06-2015 Nieuwe Waterweg.
Gemaakt door: Goudriaan, J. (Koos)
